Laminated Glass

Laminated glass

Laminated glass belongs to Architecture glass is made from two or more sheets of high quality of Float glass and PVB or SGP bonded together during the processing we will use good quality adhesive interlayer and advanced bond technology and make our Laminated glass with very high quality .The P

Product Details

Laminated glass belongs to Architecture glass  is made from two or more sheets of high quality of Float glass and PVB or SGP bonded together during the processing we will use good quality adhesive interlayer and advanced bond technology and make our Laminated glass with very high quality .

For the Laminated glass we will use hight quality of Ultra clear float glass ,or Tinted float glass ,or Clear float glass or Tempered glass to make it .

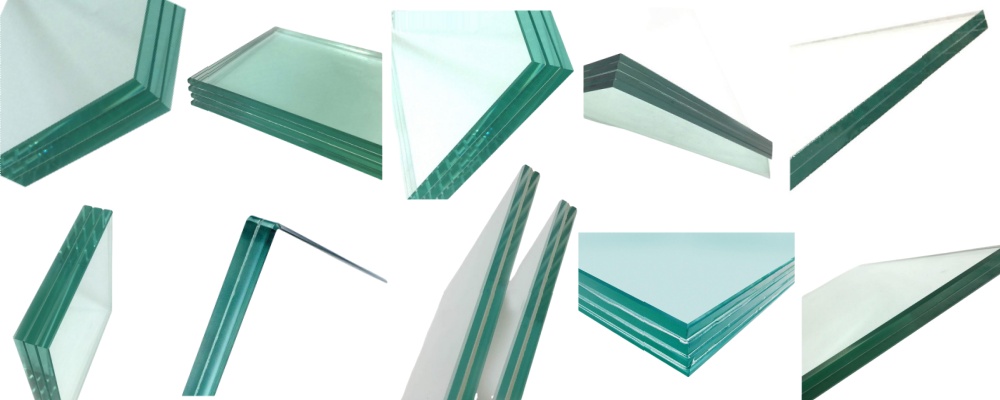

Laminated glass.jpg

The PVB interlayer is inserted between the glass sheets, and then pressure and heat are applied to the entire assembly. This creates the glass and vinyl's total adherence. Even if the glass break, the pieces stay attached to the plastic interlayer. Performance will vary depending on the thickness of the PVB interlayer film and the monolithic glass, which have various hues. The most prevalent color among those is clear. This creates the glass and vinyl's total adherence.Commonly used interlayer films for laminated glass include PVB, SGP, EVA, PU, etc

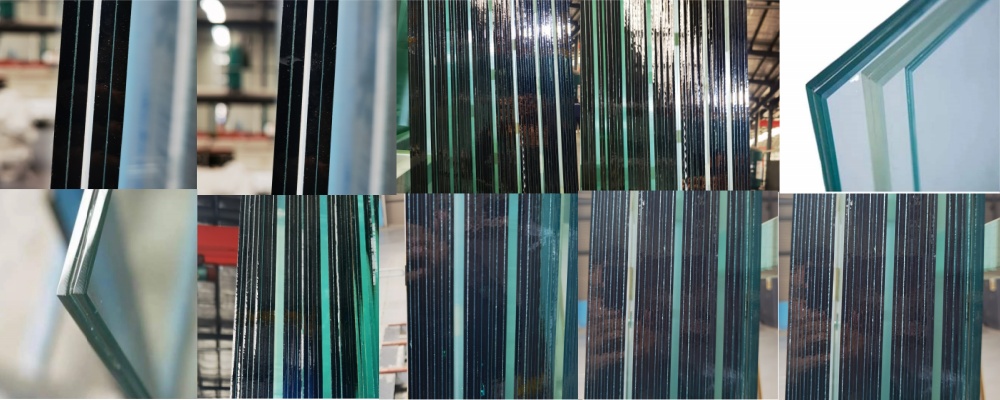

Clear Laminated glass.jpg

According to the different melting points of the intermediate membrane, it can be divided into low-temperature Laminated glass, high-temperature Laminated glass, and Insulating glass

Glass will adhere to the film even if it breaks, leaving the shattered glass's smooth and clean surface. This efficiently ensures personal safety by preventing the occurrence of debris punctures and piercing falls.

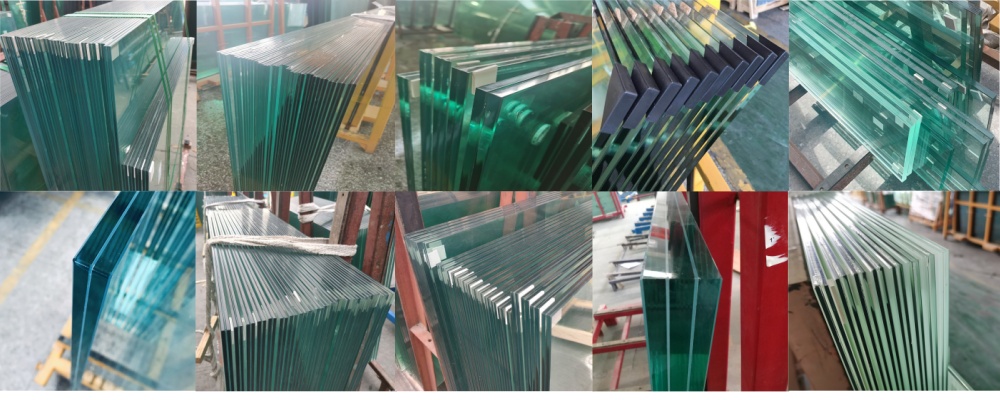

PVB laminated glass.jpg

Most developed countries, as long as economic conditions permit, will definitely first adopt laminated glass because laminated glass is safe and environmentally friendly, effectively preventing the impact of disasters such as earthquakes, and its level of safety prevention is extremely high. The glass is safe to break and may shatter under heavy ball impact, but the entire piece of glass still maintains an integrated interlayer, with fragments and sharp small fragments still sticking to the intermediate film

Laminated glass, as a type of safety glass, will not produce sharp fragments that can harm people after being shattered by impact due to the bonding effect of the PVB film sandwiched between its two ordinary glass pieces

We usually supply big sheets Laminated glass: such as 2140*3300mm ,2140*3660mm ,1830*2440mm

Our regular thickness is 6.38mm, 8.38mm,10.38mm,12.38mm .The interlayer PVB or SGP colour we usually have clear , white , bronze ,grey ,black .

Some time we do according to customer detail requirement .
